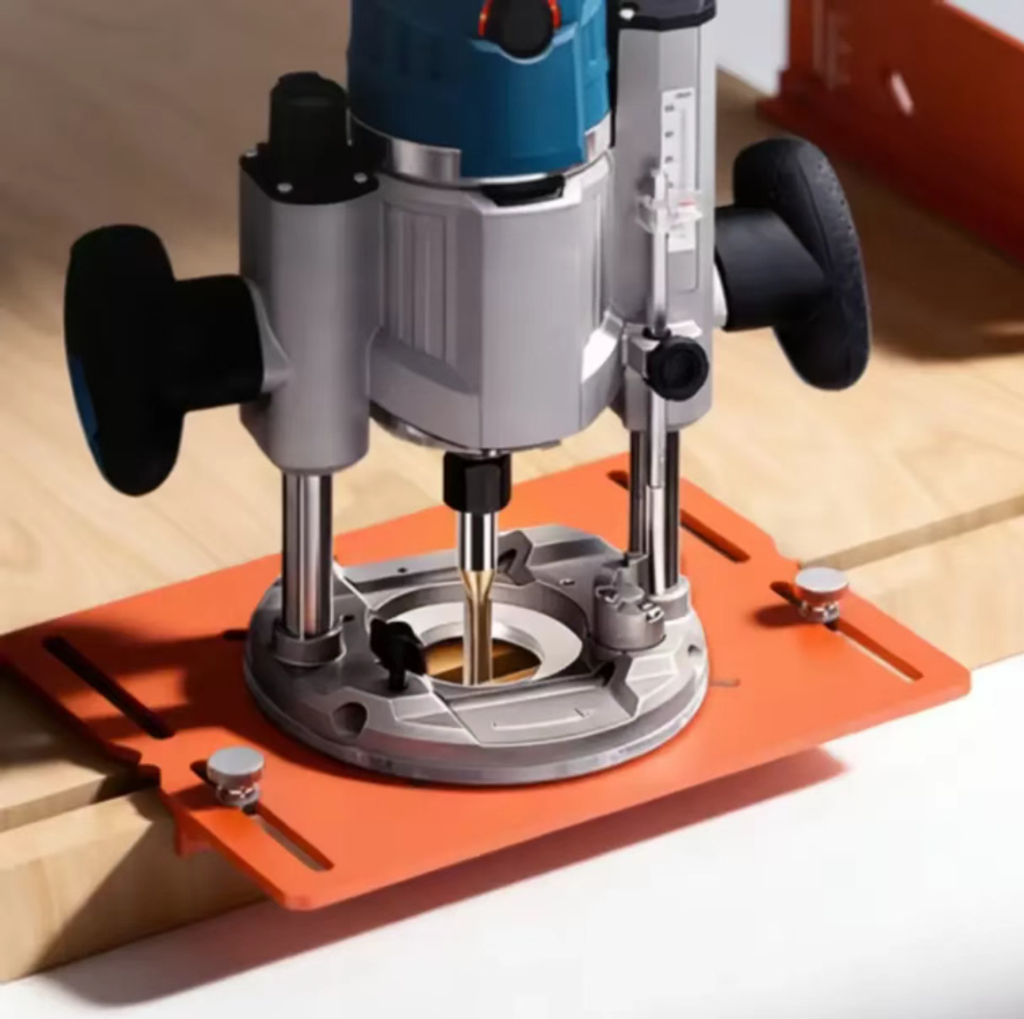

The aluminum alloy trimming machine has a double-sided bottom plate with a sloping design, which is suitable for trimming machines and large drum machines. It comes with a scale ruler and the double-sided support can be adjusted by sliding. The bottom plate has multiple slots for convenient locking and installation of the equipment, increasing the contact surface and ensuring smoother processing. Regularly clean the wood chips and store it in a dry environment.

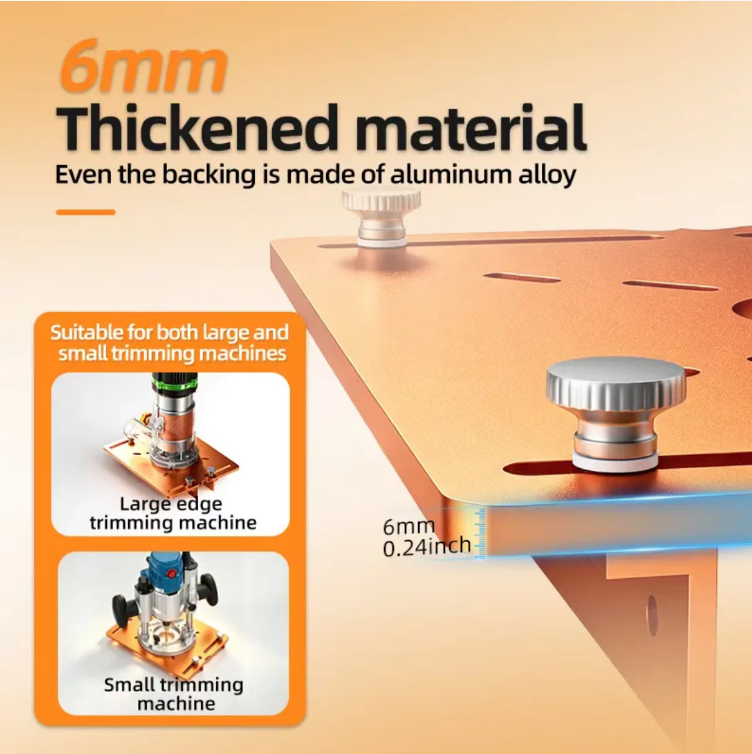

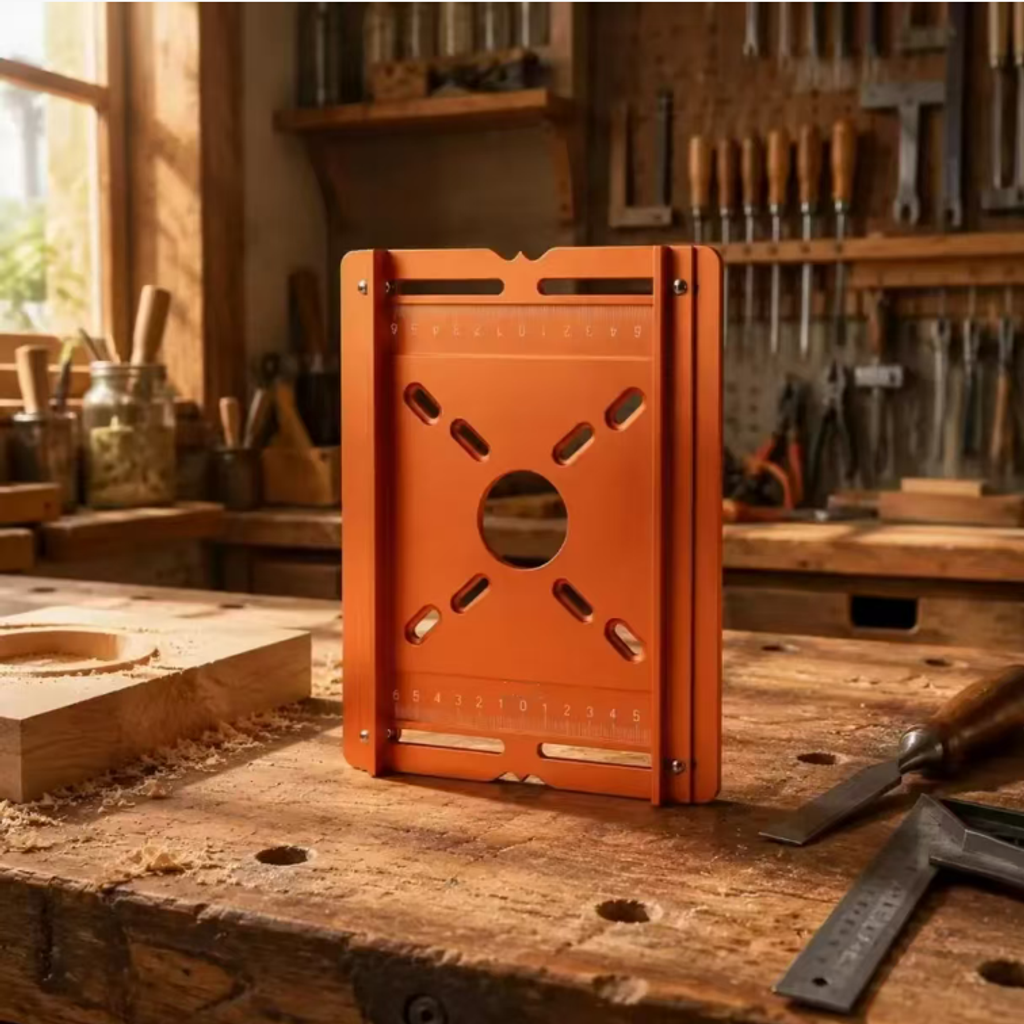

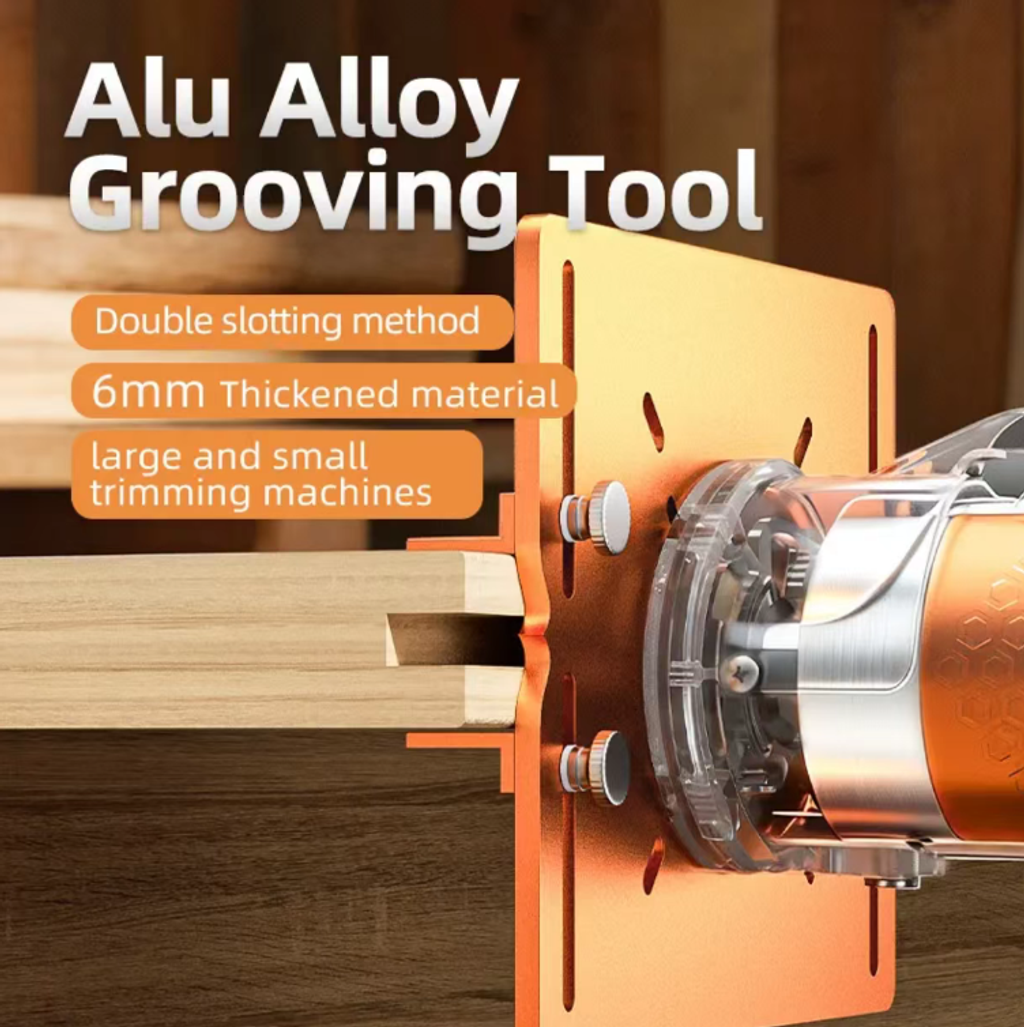

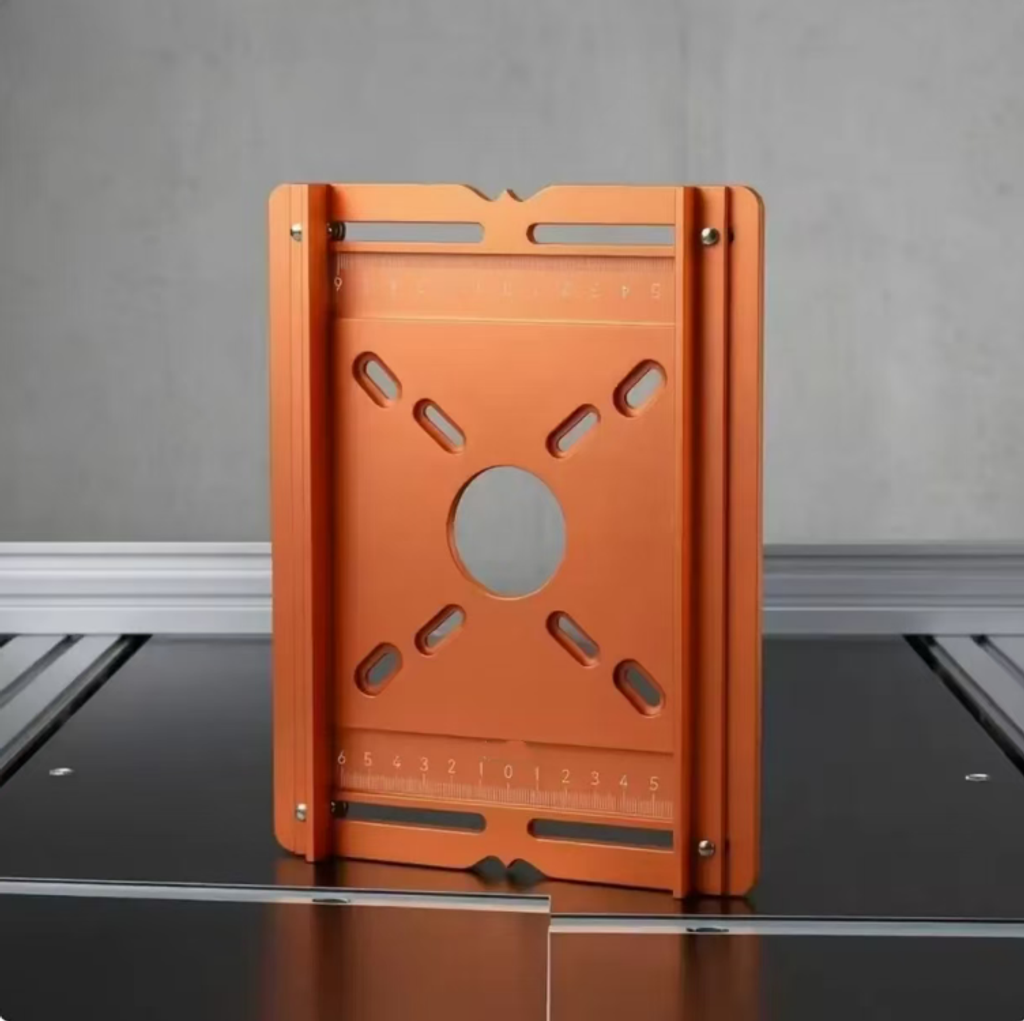

The entire product is made of aluminum alloy and undergoes oxidation treatment on the surface. It has a sturdy texture and is not prone to deformation. Compared to plastic accessories, it can withstand the daily friction of woodworking operations. A large round hole is reserved in the middle of the bottom plate to accommodate the machine's blade. The board surface is equipped with multiple long rectangular adjustment slots for screw fixation, making it convenient to install and lock the edge trimming machine and gong machine onto the bottom plate.This aluminum alloy double support bottom plate is suitable for use with edge trimming machines and large gong machines. It is a woodworking auxiliary positioning tool used for cutting grooves, trimming edges, and straight cutting of wood materials. It helps maintain a straight cutting path during processing and reduces deviations caused by manual operation. It is suitable for DIY woodworking and small-scale woodworking processing scenarios.

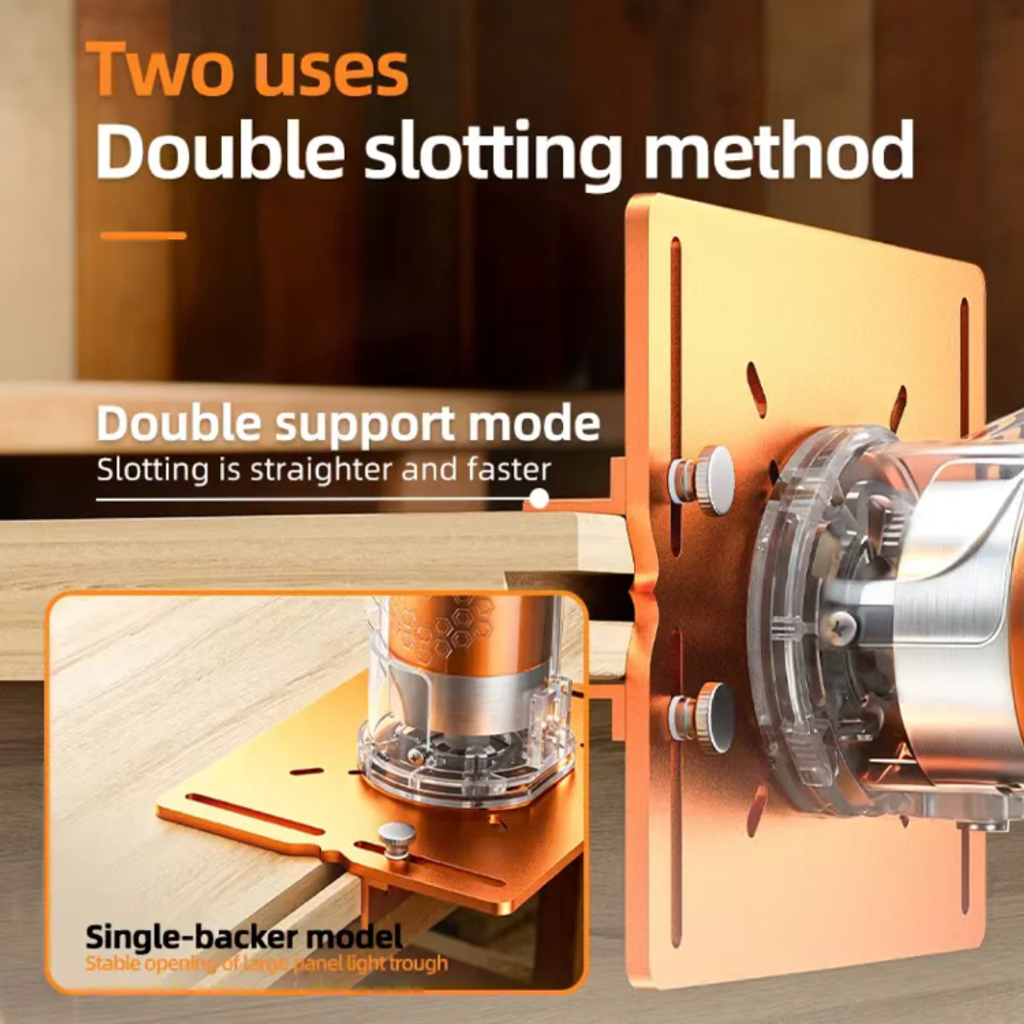

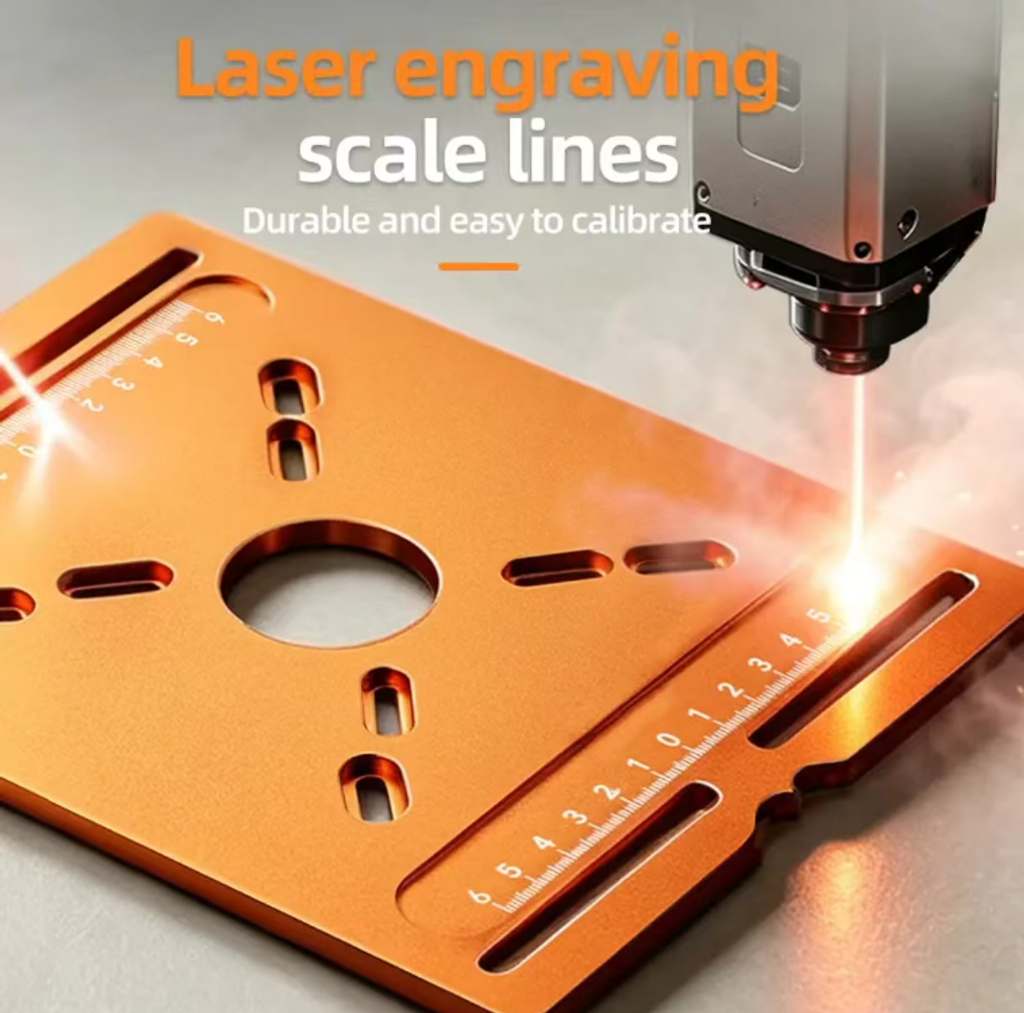

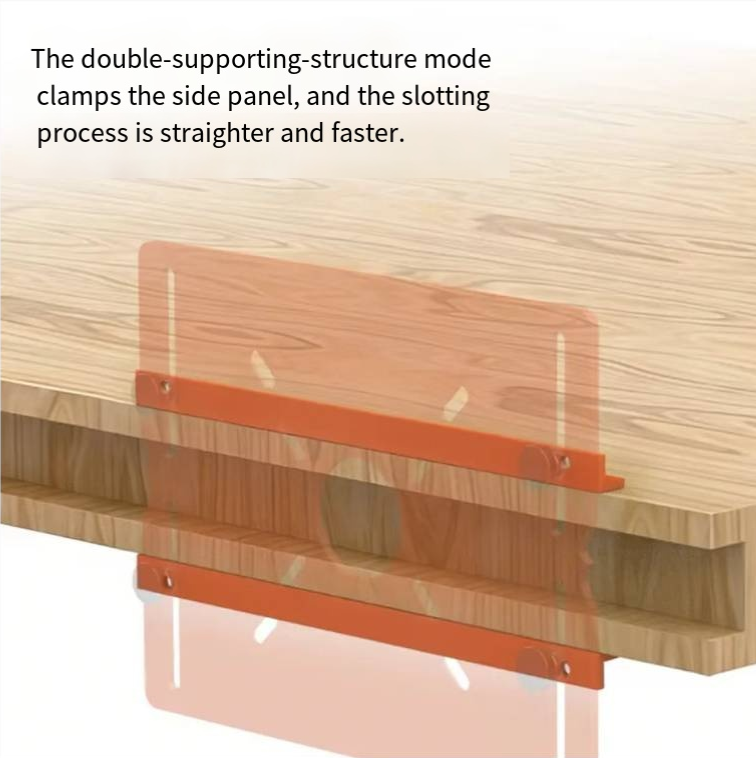

Both sides are equipped with a sliding double support structure. The board surface is marked with a scale ruler, with clear markings that allow for intuitive reading of the adjustment distance. The two side supports can be slid horizontally according to the processing requirements to adjust to the correct position, and then the screws can be tightened to fix the position, limiting the width of the wood material processing and ensuring uniform processing dimensions. Multiple processing can result in consistent workpieces of the same specification.

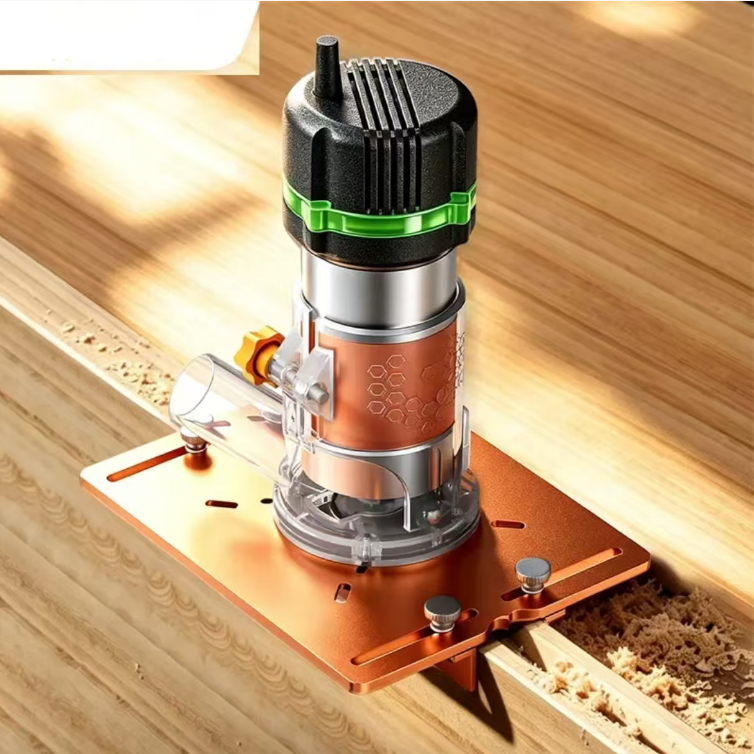

The overall structure of the bottom plate is flat. It is installed at the bottom of the machine, increasing the contact area between the equipment and the wood material. During operation, the machine runs more smoothly, reducing the probability of tilting and deviation, and improving the stability of processing. It can complete various processes such as straight edge trimming of wood materials, cutting grooves of boards, and width setting and cutting.

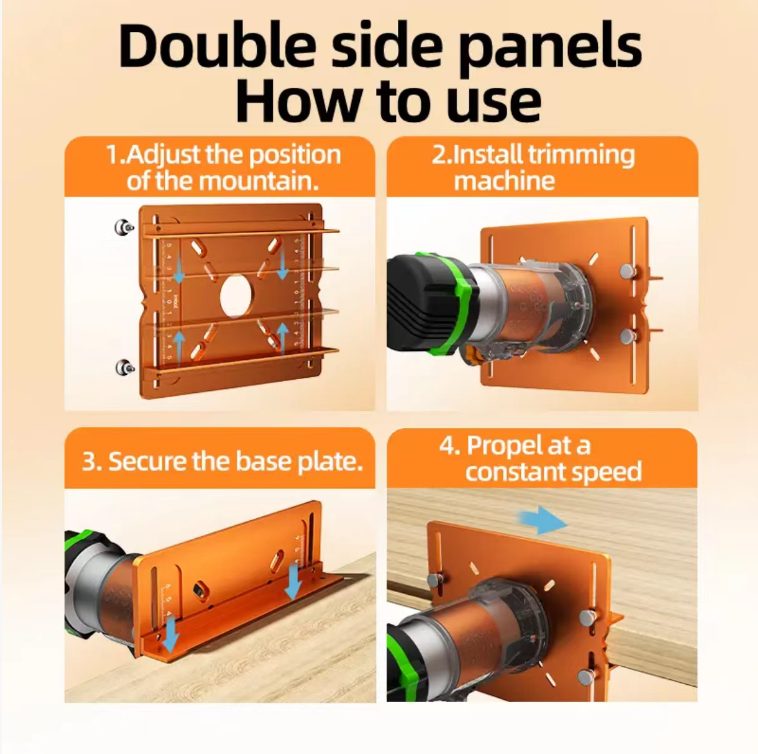

Before use, ensure that the machine and the bottom plate are securely locked, with all screws tightened to avoid loosening during operation. Adjust the spacing of the side supports according to the scale markings. First, use scrap materials for trial cutting to check if the processing dimensions are correct before proceeding with the formal processing. Push the wood material uniformly during processing and do not forcefully push. The aluminum edges have sharp corners, and during assembly and disassembly, be careful to avoid hand injuries. After use, clean the wood chips and debris on the board surface, store it in a dry place to prevent the metal from getting damp and oxidizing.

It solves the problem of handheld edge trimming machines being prone to deviation. The scale adjustment is intuitive, the double support is firmly positioned, and the assembly, disassembly, and adjustment of the accessories are simple. Whether it is a handcrafted woodworking enthusiast or a small woodworking workshop, this bottom plate can be used as a practical auxiliary tool for processing boards, trimming edges, and setting widths.
