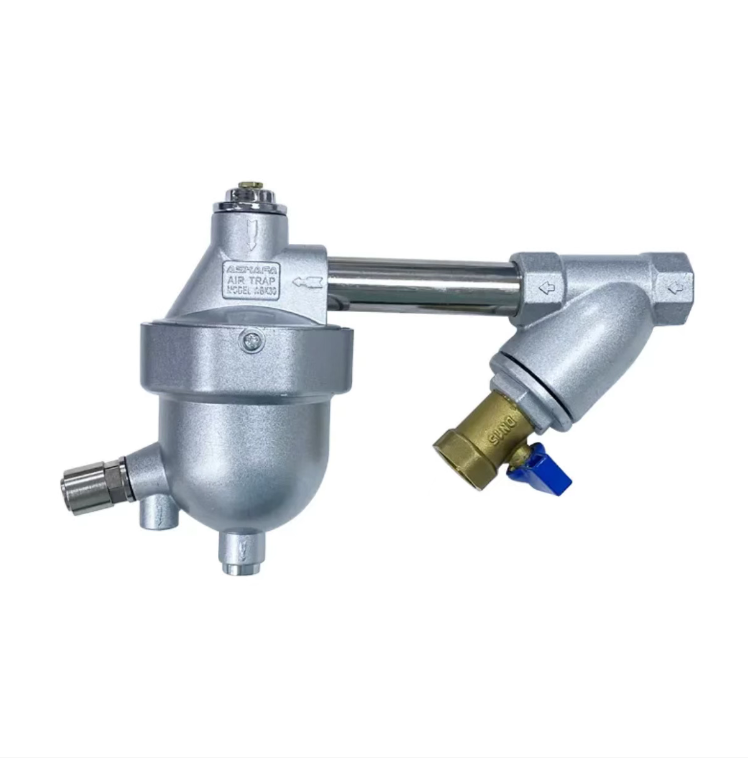

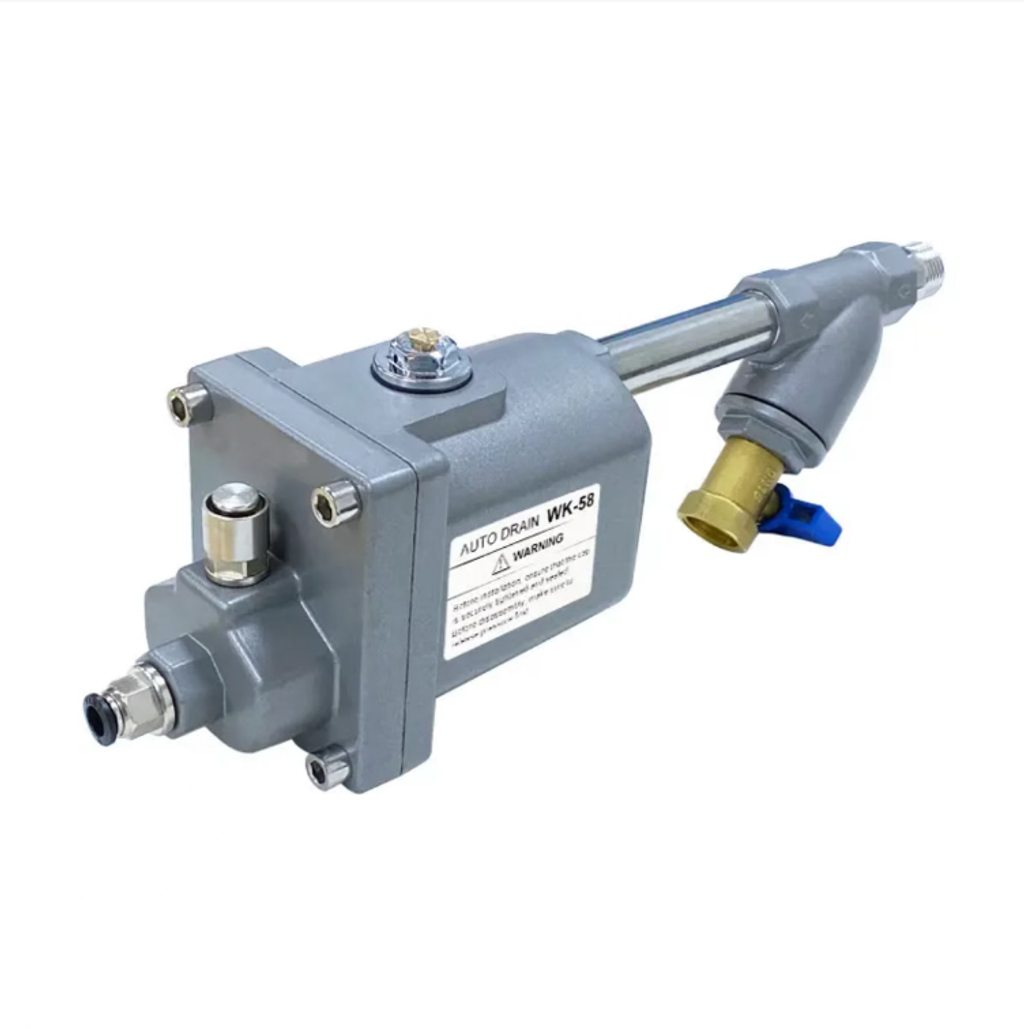

This pneumatic automatic drain device is designed to be compatible with the air compressor storage tank. It is driven by air pressure and does not require electricity connection. It automatically removes condensate water, reducing the need for manual operation. The metal casing is pressure-resistant and durable. It is equipped with a front filter to prevent impurities and reduce valve core jamming. It is suitable for various compressed air systems.

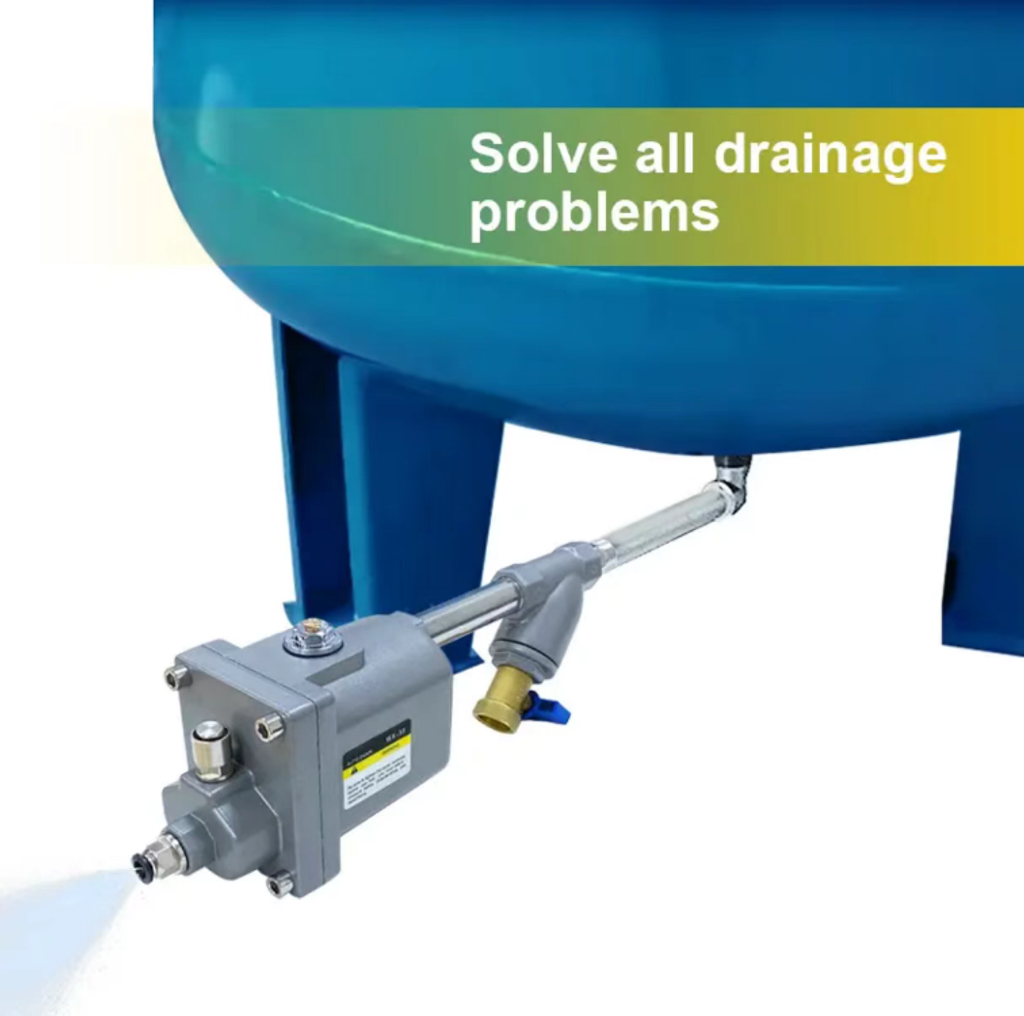

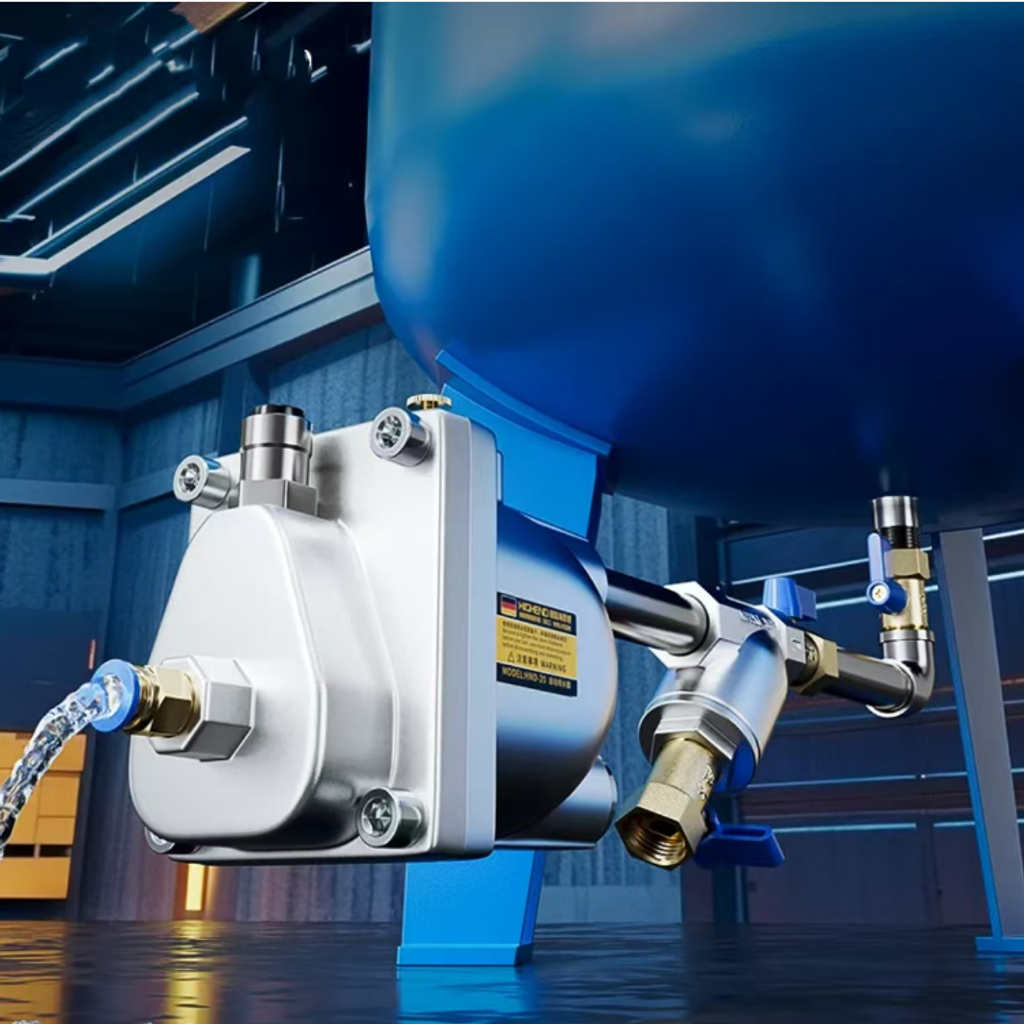

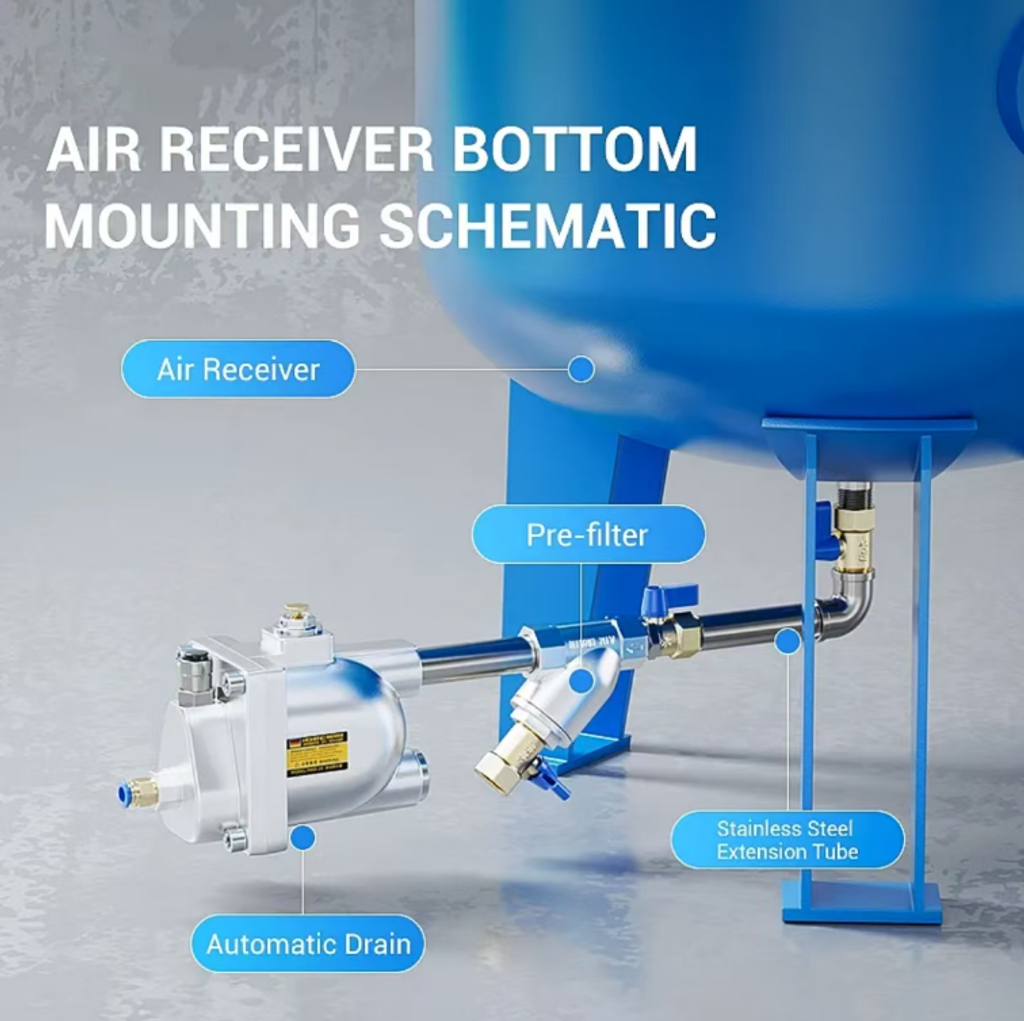

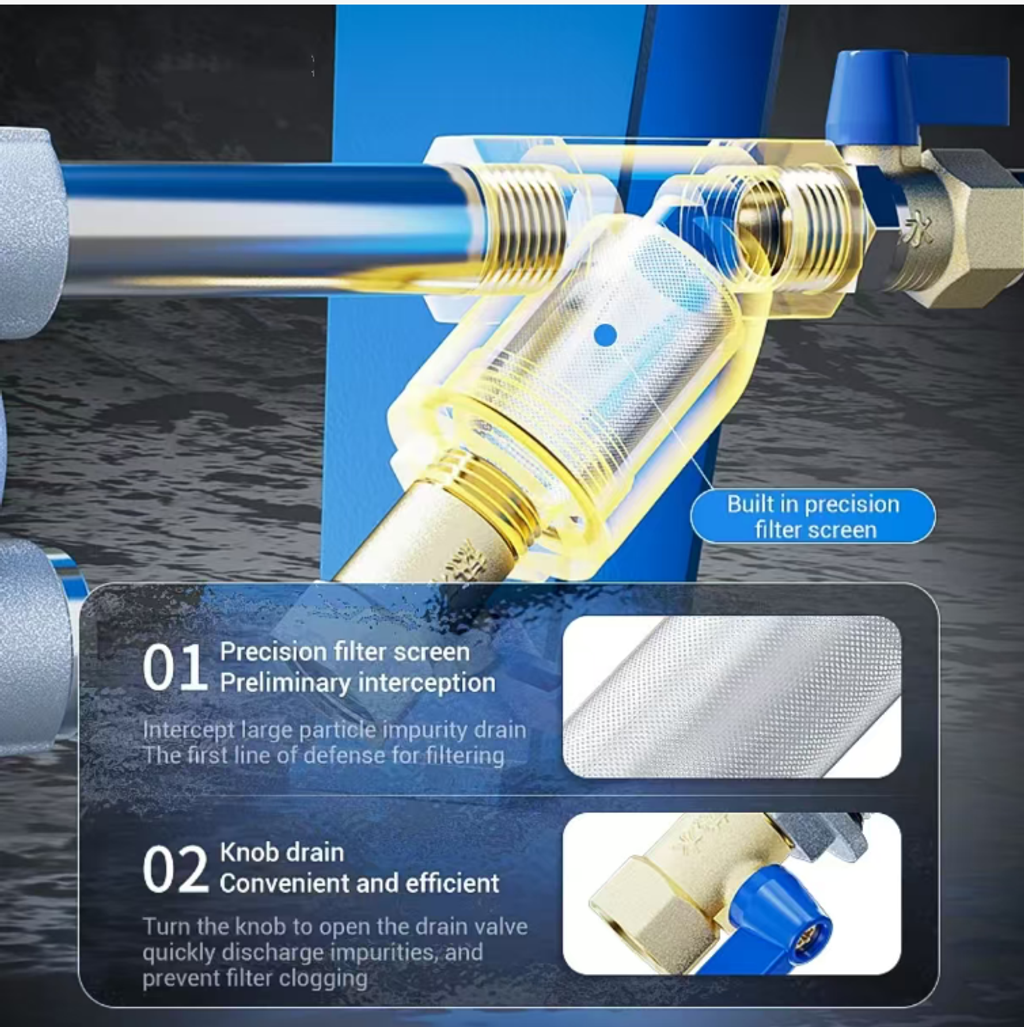

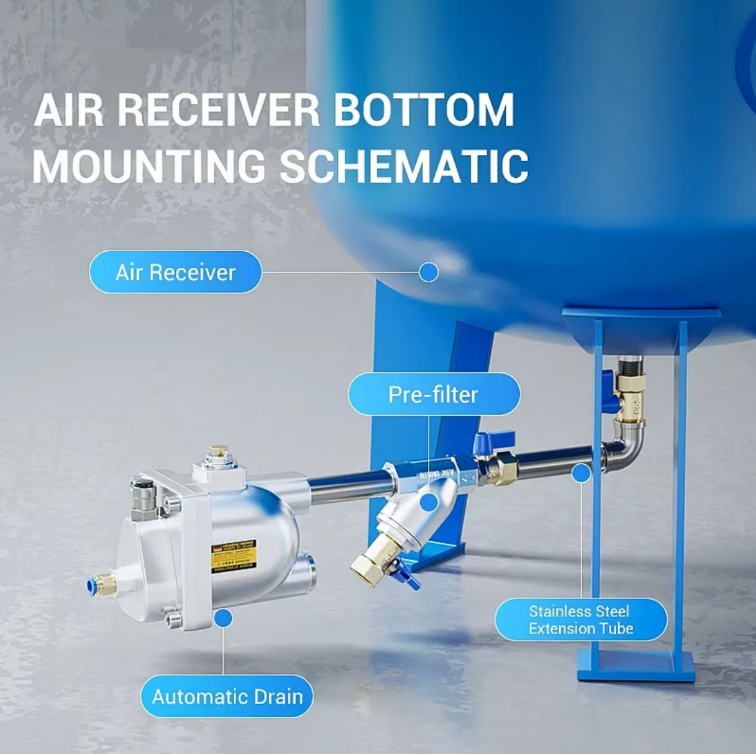

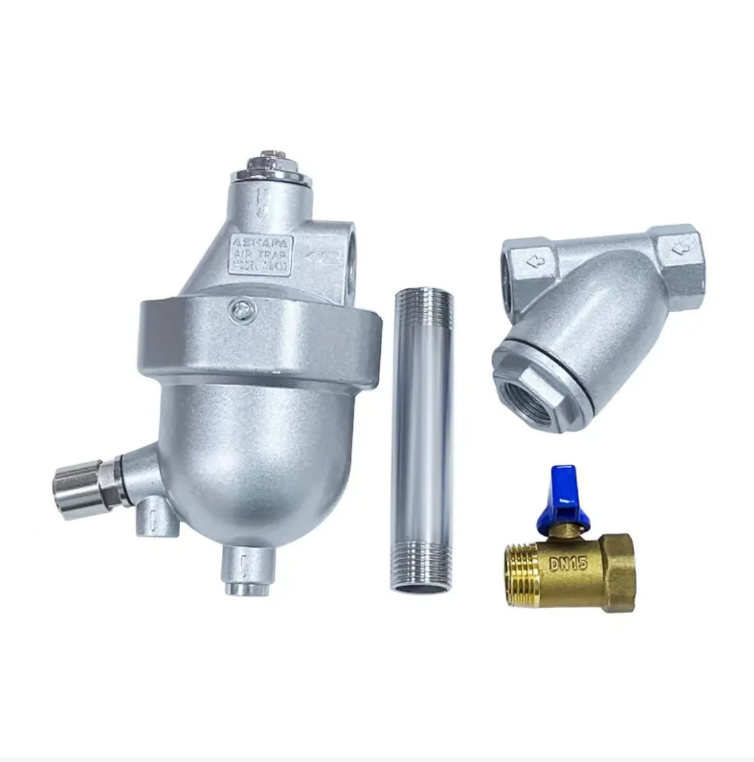

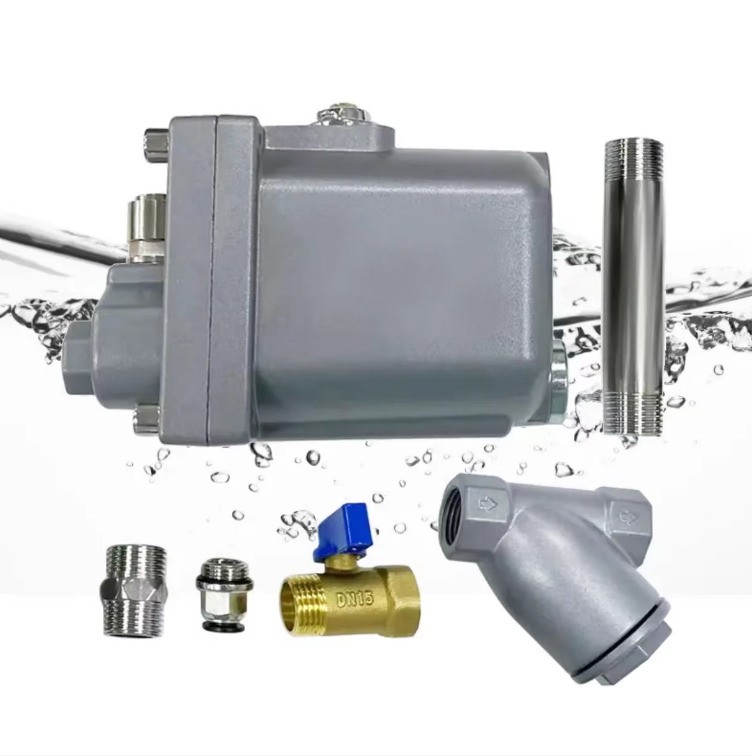

The overall shell is made of metal material, with a solid structure and good pressure resistance, capable of adapting to the high-pressure conditions inside the air compressor. It is equipped with a front filter component, which can intercept impurities and rust particles in the pipeline, reduce the possibility of sand and dirt entering the drainage device, and lower the probability of valve core jamming, thereby extending the service life of the equipment. The valve body is well-made, with regular joint interfaces, convenient installation and disassembly, and can be directly connected to the bottom of the air storage tank, the dehumidifier, or the drainage point of the air storage pipeline.This pneumatic automatic drain is compatible with horizontal high-pressure air pumps, air compressors, and air receiver tanks. Driven by compressed air pressure, it automatically drains condensate without requiring an external power source, making it ideal for various compressed air systems. It reduces the need for manual water discharge operations and helps maintain stable operation of the compressor system.

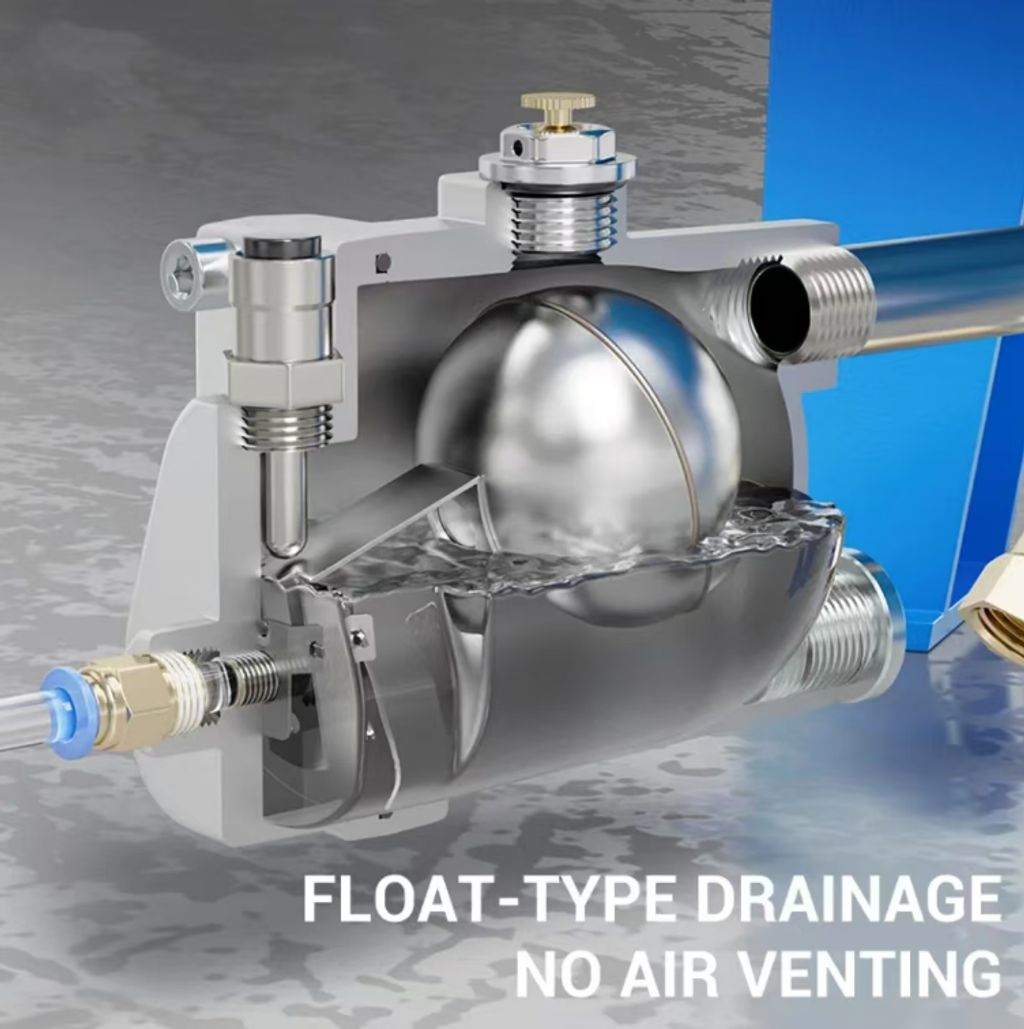

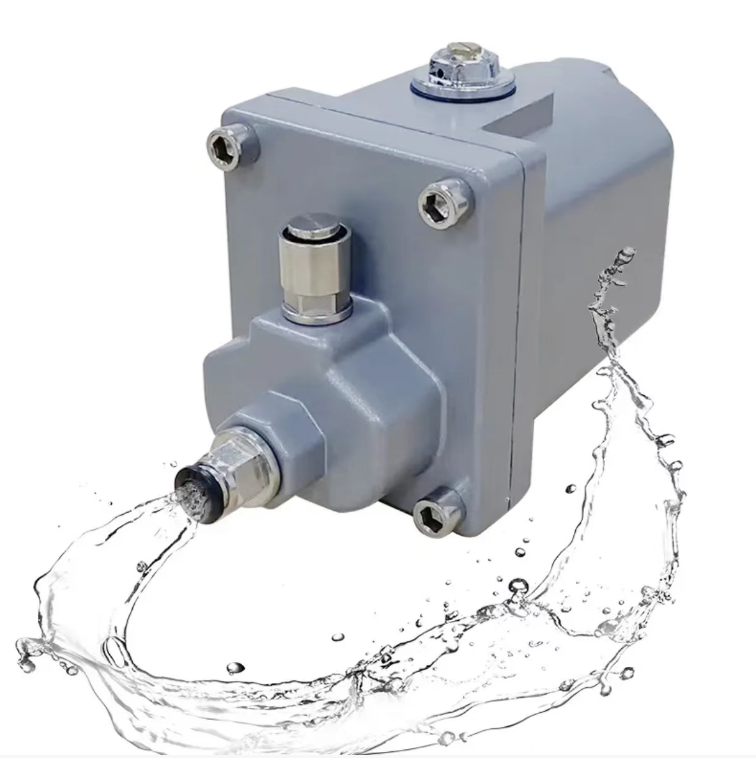

The device automatically activates drainage based on changes in liquid level inside the tank. Once a certain amount of condensate accumulates, it automatically discharges the water and then seals shut once the water is fully drained, preventing continuous air leakage and reducing unnecessary compressed air loss. A built-in manual pressure release test knob allows users to manually check the drainage function during routine maintenance, facilitating troubleshooting for potential clogs. An included ball valve enables convenient isolation of the pipeline, allowing maintenance and cleaning without releasing the entire air receiver pressure.

Commonly used in factory air compressor storage tanks, screw compressors, refrigerated dryers, and large air inflation pumps, this drain efficiently handles condensed moisture generated during compressed air operation. During compression, moisture continuously separates and accumulates within the tank. If left unremoved, it may cause internal corrosion and contaminate pneumatic tools via airflow, shortening the lifespan of pneumatic components. Using this drain ensures timely removal of condensate, improves compressed air quality, and reduces the risk of pipeline corrosion.

For optimal performance, install horizontally to ensure smooth flow. Regularly clean accumulated debris from the filter to prevent valve core blockage. This unit is designed exclusively for compressed air drainage applications; always operate within the specified pressure range and avoid overpressure use. Not suitable for highly corrosive fluids. In case of abnormal leakage or drainage failure, inspect the connections and internal valve components promptly. With proper daily maintenance, this drain serves as a reliable and practical accessory for pneumatic systems.
